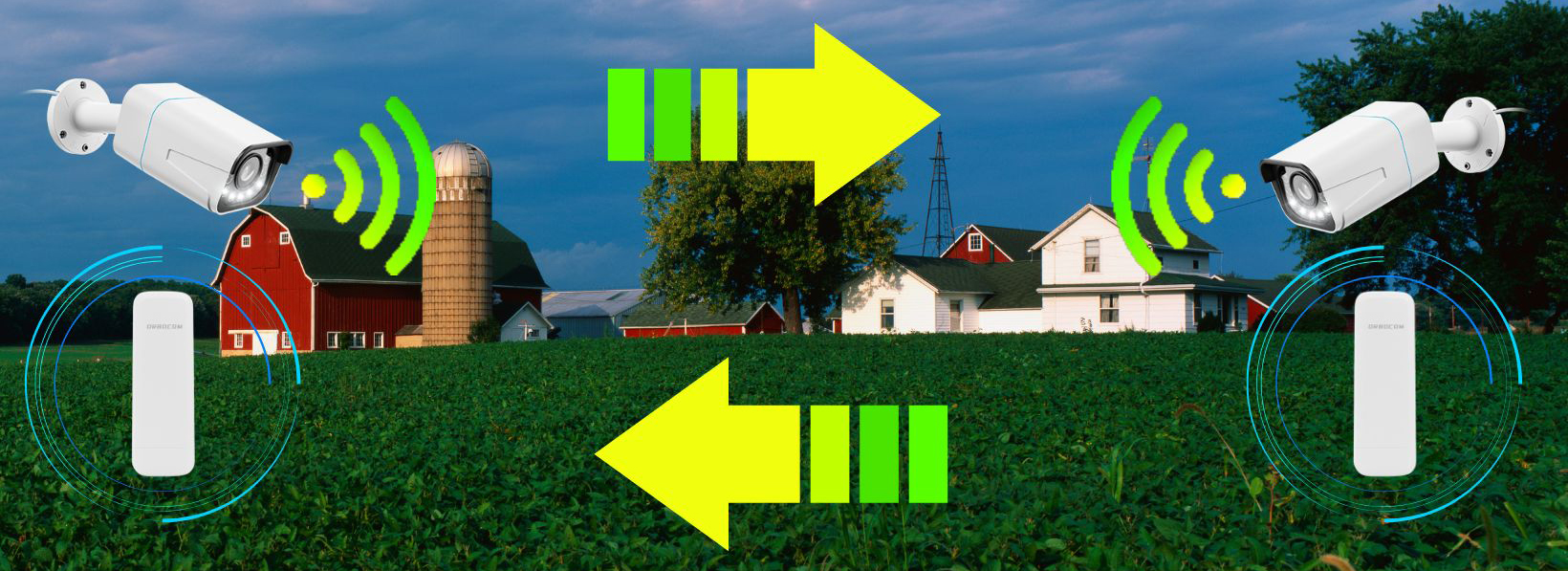

Point-to-Point Internet Bridging

Point-to-point wireless internet bridging is a technology that allows for the creation of a direct wireless connection between two fixed points or locations. This technology is commonly used to extend network connectivity between two remote sites where running physical cables may be impractical or cost-prohibitive.

Here’s how point-to-point wireless internet bridging works:

1. Two Endpoints: There are two endpoints in a point-to-point wireless bridge setup. Each endpoint typically consists of a wireless radio transceiver and an antenna.

2. Line of Sight (LOS): For a successful point-to-point wireless bridge, there must be a clear line of sight (LOS) between the two endpoints. Any obstacles, such as buildings, trees, or hills, can degrade or disrupt the wireless signal.

3. Wireless Signal: The wireless radio transceivers at both endpoints transmit and receive data over the air using radio waves. These devices are often configured to operate in specific frequency bands, such as the 2.4 GHz or 5 GHz bands, which are commonly used for Wi-Fi.

4. Configuration: Both endpoints need to be configured to operate in bridge mode. This means that they are set up to communicate exclusively with each other and ignore other wireless signals in the area.

5. Data Transmission: Data is transmitted wirelessly between the two endpoints. This can include internet traffic, LAN traffic, or any other type of data that needs to be shared between the two locations.

6. Security: Security measures, such as encryption and authentication, are often employed to protect the data being transmitted between the two endpoints, ensuring that it remains confidential and secure.

Point-to-point wireless bridges are used in various scenarios, including:

1. Connecting Remote Offices: Point-to-point bridges can link two separate office locations, allowing them to share network resources and data seamlessly.

2. Internet Service Providers (ISPs): ISPs often use point-to-point wireless bridges to deliver high-speed internet connectivity to remote or underserved areas where laying cables would be impractical.

3. CCTV Surveillance: Point-to-point wireless links are used in video surveillance systems to connect remote cameras to a central monitoring station without the need for extensive cabling.

4. Backhaul Connections: Wireless bridges are commonly used as backhaul connections in wireless ISP networks, connecting base stations to the internet backbone.

5. Temporary Connections: They are also useful for establishing temporary network connections for events, construction sites, or disaster recovery scenarios.

Overall, point-to-point wireless internet bridging offers a flexible and cost-effective solution for extending network connectivity between two locations without the need for physical cables. However, it does require careful planning to ensure a clear line of sight and optimal performance.
